Screw
ARIDA
7318159090
CNC machining center
Stainless Steel
Fastener
Cold Forging
High Rigidity and Precision
ISO, GS, RoHS, CE
One year
Forging
Standard exporting package
ARIDA
China
CNC precision
New
Motor
Worldwide
yes
CNC
| Quantity: | |
|---|---|

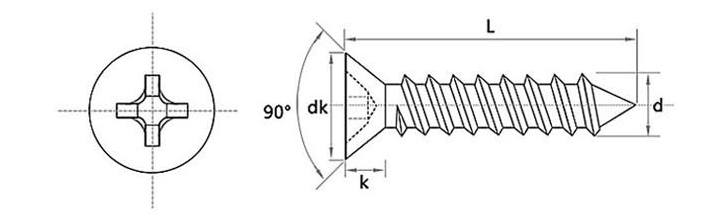

| Specification | M2 | M2.2 | M2.6 | M3 | M3.5 | M4 | M4.2 | M4.8 | M5 | M5.5 | M6 | M6.3 | M8 |
| Thread diameter | 2 | 2.2 | 2.6 | 3 | 3.5 | 4 | 4.2 | 4.8 | 5 | 5.5 | 6 | 6.3 | 8 |
| Thread pitch | 0.8 | 0.8 | 0.9 | 1.1 | 1.3 | 1.34 | 1.4 | 1.6 | 1.6 | 1.8 | 1.8 | 1.8 | 2.1 |
| Head diameter | min | 3.4 | 3.9 | 4.1 | 5.3 | 6.5 | 7 | 7.6 | 8.5 | 9.7 | 11.8 | 11.8 | 13.9 |
| max | 3.7 | 4.2 | 4.4 | 5.5 | 6.8 | 7.9 | 9.7 | 10.7 | 12.2 | 12.2 | 12.2 | 14.2 | |
| Cross slot type | 1# | 1# | 1# | 2# | 2# | 2# | 2# | 2# | 3# | 3# | 3# | 4# | 4# |
| Depth of Cross slot | min | 0.65 | 1.02 | 1.05 | 0.91 | 1.62 | 2.03 | 2.11 | 2.6 | 2.59 | 3.33 | 3.33 | 4 |
| max | 1.01 | 1.32 | 1.42 | 1.43 | 2.12 | 2.53 | 2.62 | 3.1 | 3.1 | 3.91 | 3.91 | 4.65 |
Sharp Pointed Tip: The tip is designed to penetrate the drywall and start cutting into the stud, whether it's wood or metal.
Self-Drilling Capability: The threads are engineered to cut into the base material, eliminating the need for pre-drilling.
Thread Design: The threads are usually coarse for better holding power in wood or fine for metal studs. Some screws have a special thread pattern that helps prevent over-driving and ensures a secure grip.
Head Style: Commonly available in styles such as bugle head, round head, or flat head, depending on the application and desired finish.
Coating: Most self-drilling drywall screws are coated to prevent rust and corrosion. Common coatings include zinc, phosphate, and sometimes epoxy.
Length and Diameter: Available in various lengths and diameters to accommodate different thicknesses of drywall and studs.
Drywall Installation: Attaching drywall panels to wooden or metal studs.
Ceiling Panels: Securing ceiling panels to joists.
Interior Partitions: Fastening drywall for interior walls and partitions.
Overlays and Repairs: Replacing damaged sections or adding overlays to existing drywall.
For Wood Studs: Typically have a coarse thread pitch and a bugle head. They are designed to penetrate wood studs and hold the drywall securely.
For Metal Studs: Have a finer thread pitch and often a bugle or round head. They are specifically engineered to tap into metal studs without causing damage to the material.
Increased Efficiency: The ability to drill and fasten in one step significantly speeds up the installation process.
Reduced Labor Costs: Saves time and effort by eliminating the need for a separate pre-drilling step.
Consistent Results: Helps achieve a consistent depth of drive and a uniform appearance.
Durability: The strong threads and coatings ensure that the screws hold up well over time, even in humid environments.
Power Driver: Use a power screwdriver or drill with a bit that matches the screw head to ensure a quick and consistent installation.
Proper Bit: Make sure to use a bit that is the correct size for the screw head to prevent stripping.
Alignment: Ensure that the drywall is aligned properly with the studs before driving the screws.
Customer Name: Michael JohnsonCompany: M.J. ConstructionLocation: Los Angeles, CA
Date: June 10, 2023
Review Title: Time-Saving and Reliable Drywall Screws
Rating: ⭐⭐⭐⭐⭐ (5 out of 5 stars)
Review:
I recently used the Self-Drilling Drywall Screws on a major renovation project and I must say, they've made a huge difference in our productivity. Here's why:
Pros:
Ease of Use: The self-drilling feature is fantastic. It saves us the hassle of pre-drilling holes, making the installation process much faster. We were able to attach the drywall to both wood and metal studs without any issues.
Sturdy Construction: The screws are made of durable steel and have a zinc coating, which protects against rust and corrosion. This is especially important in humid environments where we work.
Positive Feedback: The built-in "positive-stop" mechanism is a nice touch. When installing the screws, there's an audible "pop" that indicates they're fully seated and locked in place. It gives us confidence that the drywall is securely attached.
High Load-Bearing Capability: These screws are rated for higher loads compared to regular drywall anchors. This means we can install heavier fixtures directly into the drywall without worrying about the screws failing over time.
Versatile: The screws come in a variety of lengths, which is convenient for different applications. We used the 1.5-inch and 2-inch screws for standard drywall, and the 2.5-inch screws for thicker panels.
Cons:
Slightly More Expensive: Compared to regular drywall screws, these self-drilling screws are a bit pricier. However, the time saved and peace of mind they provide make up for the extra cost.
Conclusion:
Overall, I highly recommend the Self-Drilling Drywall Screws. They've streamlined our drywall installation process and have proven to be reliable and sturdy. If you're looking to save time and improve the quality of your work, these screws are definitely worth considering.
