H-80T
ARIDA
2024080180

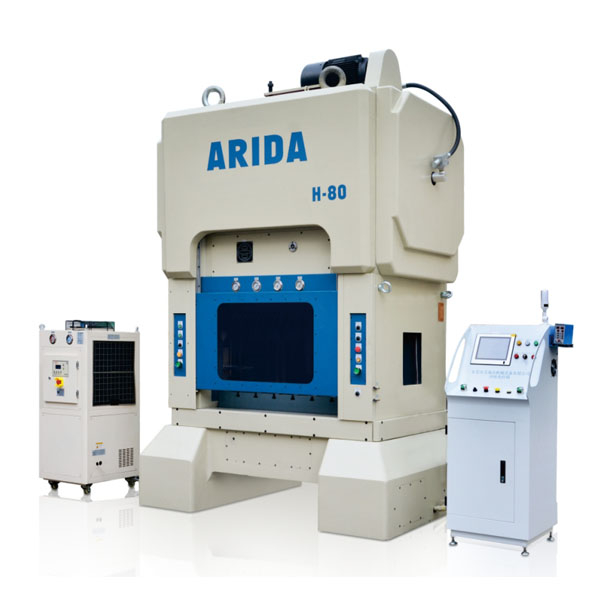

High Speed H-80t Press Machine
High-strength cast iron fuselage, Eccentric high-strength alloy steel crankshaft
Local Service/Online Service
High Speed Punch Machine
Hot
Electricity
Servo drive, intelligent digital die height adjustment, with old data one-click storage
GS, CE, RoHS, ISO 9001
12 months
Semi-Open Punch
Single Action
Crank Press
Standard Export Packing
ARIDA
China
High precision
Worldwide
According to customer request
| Quantity: | |
|---|---|
Machine Introduction
High Speed Press Machine Advantage
A high-speed crank press is a high-performance metal forming machine widely used in industries such as automotive, electronics, and aerospace. Its advantages include:
1.High Precision: With precise guiding systems and servo control, the machine ensures high accuracy during processing, leading to superior product quality.
2. High-Speed Stamping Capability: Optimized mechanical design and advanced drive technology enable very high stamping speeds, significantly increasing production efficiency.
3. Stability and Reliability: The sturdy gantry structure provides excellent rigidity and stability, ensuring consistent processing quality even during long periods of continuous operation.
4. Versatility: Depending on the tooling configuration, a high-speed crank press can perform a variety of stamping operations such as punching, bending, and drawing, catering to diverse production needs.
5. High Automation: Integrated with automatic material feeding and retrieval systems as well as online inspection, it minimizes the need for manual intervention and increases the level of automation in production.
6. Energy Efficiency and Environmental Friendliness: Employing energy-saving technologies and materials, it reduces energy consumption while also lowering noise pollution, aligning with modern manufacturing’s environmental requirements.
7. Ease of Maintenance: Modular design facilitates routine maintenance and troubleshooting, reducing downtime and maintenance costs.
8. Safety: Equipped with comprehensive safety features, such as emergency stop buttons and safety light curtains, it effectively safeguards operators’ safety.
These characteristics make the high-speed gantry press an indispensable piece of equipment in modern manufacturing.
H-Frame Machine Usage Scenario
High speed punching machine is widely used in precision electronics, communications, computers, household appliances, auto parts, motor rotor and other small precision parts stamping processing.
High Speed H-80T Press characteristics
Crank high speed punching machine is an advanced CNC machine, with many unique characteristics and advantages. First of all, the gantry high-speed punching machine uses advanced numerical control technology, simple and convenient operation, high precision, can meet the needs of various complex shapes of stamping processing. Secondly, the cutting speed of gantry high-speed punching machine is very fast, which can greatly improve production efficiency and reduce production costs. In addition, the cutting quality of the gantry high-speed punch is very stable, and the consistency and quality stability of each product can be guaranteed by automatically adjusting the cutting parameters.
High Speed H-80t Press Machine Specification
| Model | Arida-80 |
| Capacity | 80 Ton |
| Stroke of Slide | 30mm 40mm 50mm |
| SPM | 100-600 |
| Die-Shut height | 400-450 mm |
| Area of Slide | 1250 x 750 x 160 mm |
| Slide | 1250 x 550 mm |
| Slide Adjustment | 30mm |
| Bed Opening | 950 x 2150 mm |
| Motor | 30 HP |
| Lubrication | forced lubrication |
| Vibration System | dynamic balance & shock-proof footpads |
Apply:
The machine is specialized in producing motor lamination, the stators and rotors assemblies, EI laminations.
The machine is used to process precision shrapnel, hardware terminals, precision stamping parts, etc. It is widely used in automobile industry, electronics industry, home appliance industry, aviation industry, etc. With years of technical experience, continuous innovation and technical improvement, the company aims to provide customers with high-quality products and services, and has won customers' trust and praise.
FAQ
1. What's payment terms?
T/T method accepted and LC at sight if big amount.
We need to arrange the production schedule. Normally, it takes about 30 days.
Usually the warranty period is 12 months. Also the warranty time can be extend according the specific requirements.
For the standard decoiler straightener feeder machine, it's easy to be installed and operate, most of our customers can do it by themselves. And what's more, our technical engineer can teach your operators how to install and operate it. machine on-site training will avoid operational problems that are easy to occur at the beginning of production. The training after sales service will create more value for your employees.
For the compact coil feed machine and complete metal stamping line, ARIDA can arrange engineers to go overseas for the coil handling equipment installation. They guide the customer's operators on-site. Then the commissioning phase will smoothly enter into the mass production phase.
ARIDA machine will use plastic films cover the machine, and then fix it into a wooden case.
ARIDA machine will fix each part with ropes on the shipping container and then wrapped them with plastic films.
We will use remote video and telephone to guide your technicians to operate and solve problems.
Contact or mail us to share your product drawing, then we will suggest the best match machine and complete stamping line solution.
We have sales and after-sales, technical support departments in (C-2.Sector 85.Noida,Gautam Budha NAGAR ,UTTAR PRADESH 201301, India)
